Misselbeck Dam
Valve Cycling February 2022

Feb 22, 2022, valves were cycled.   Pictures below.

Orientation for left and right:  standing on dam facing outflow direction.
Orientation for front and rear:  rear = inside the tunnel  front is in the sunshine

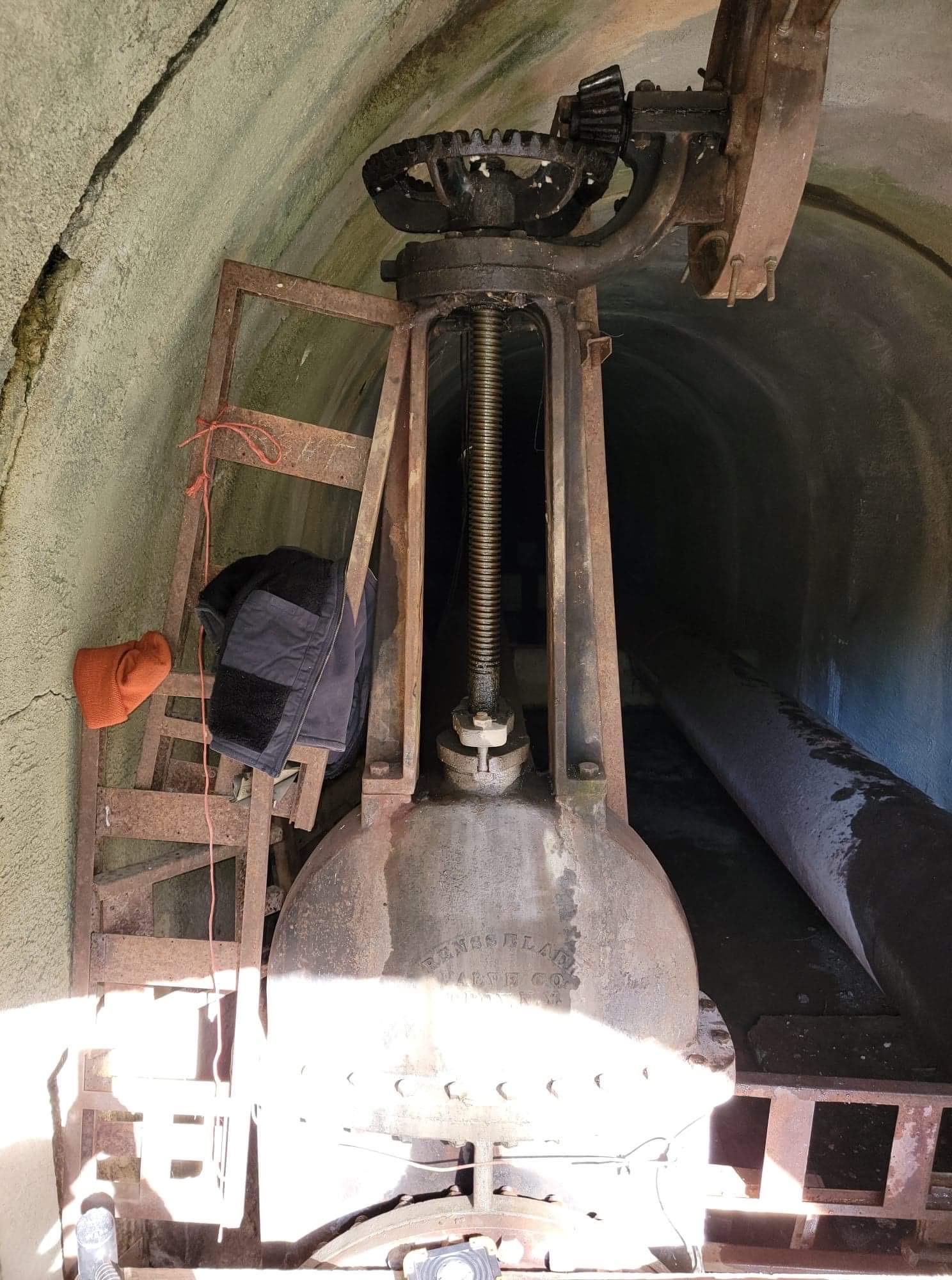

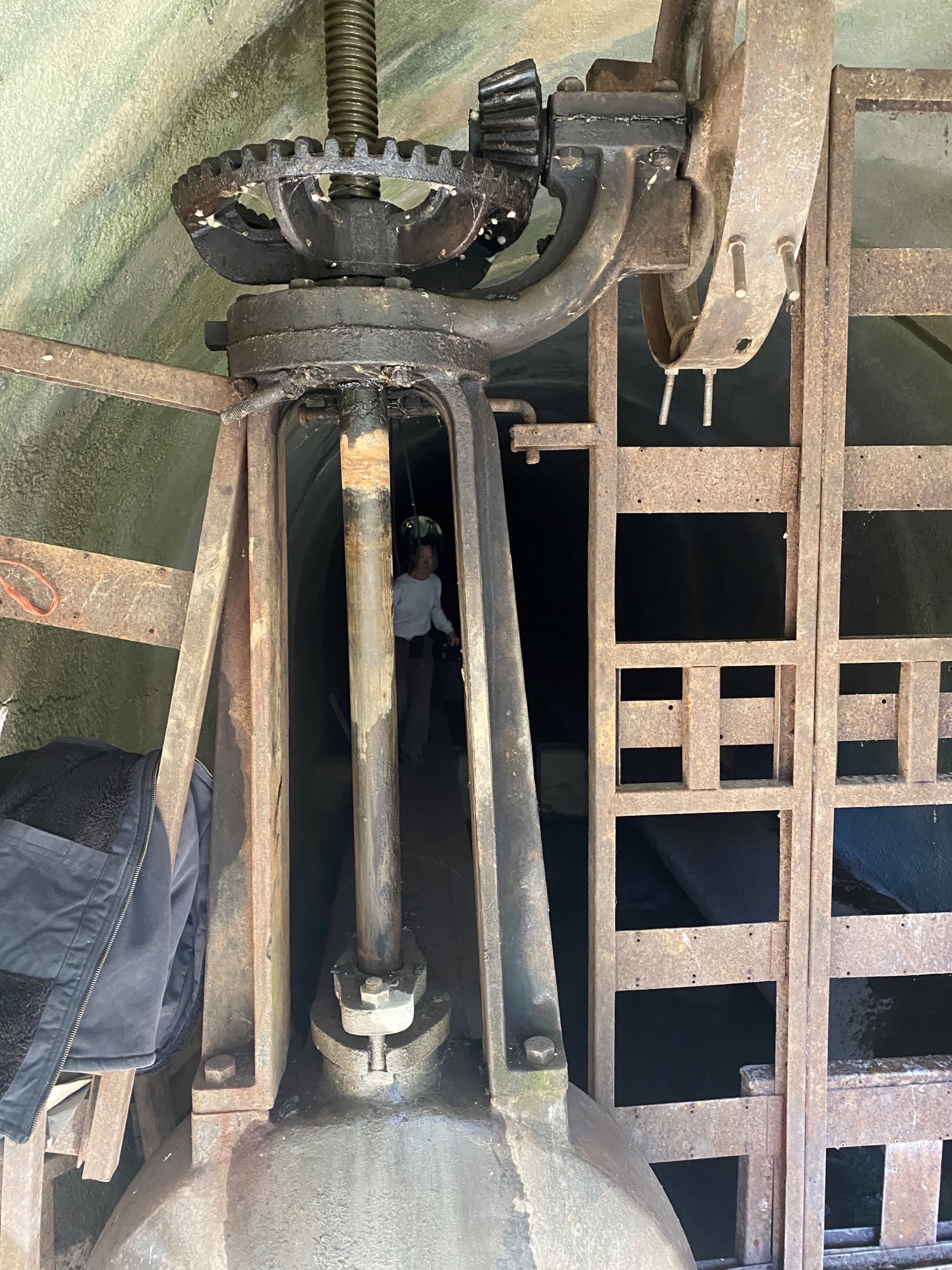

Front Left Valve Open and Closed

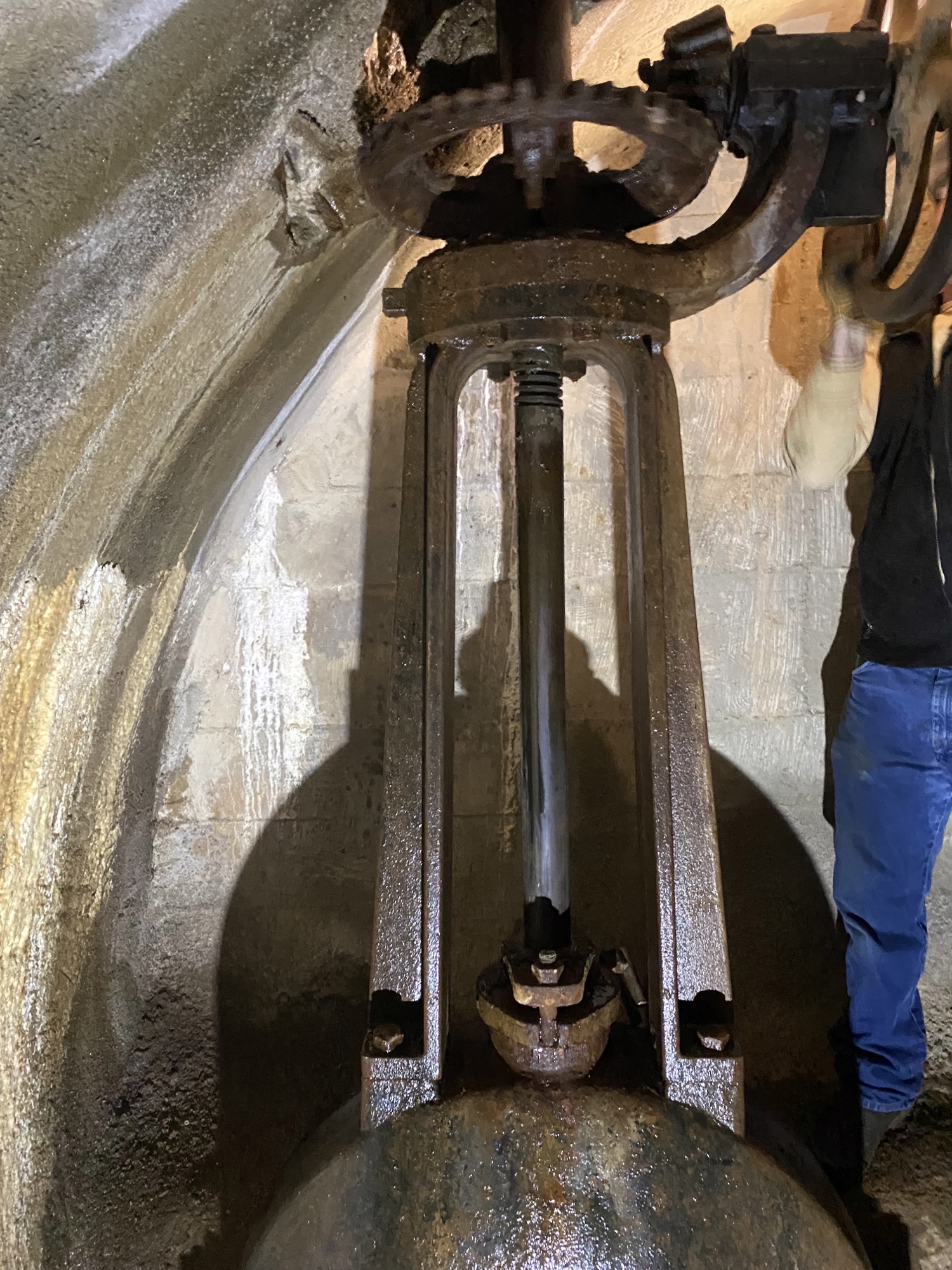

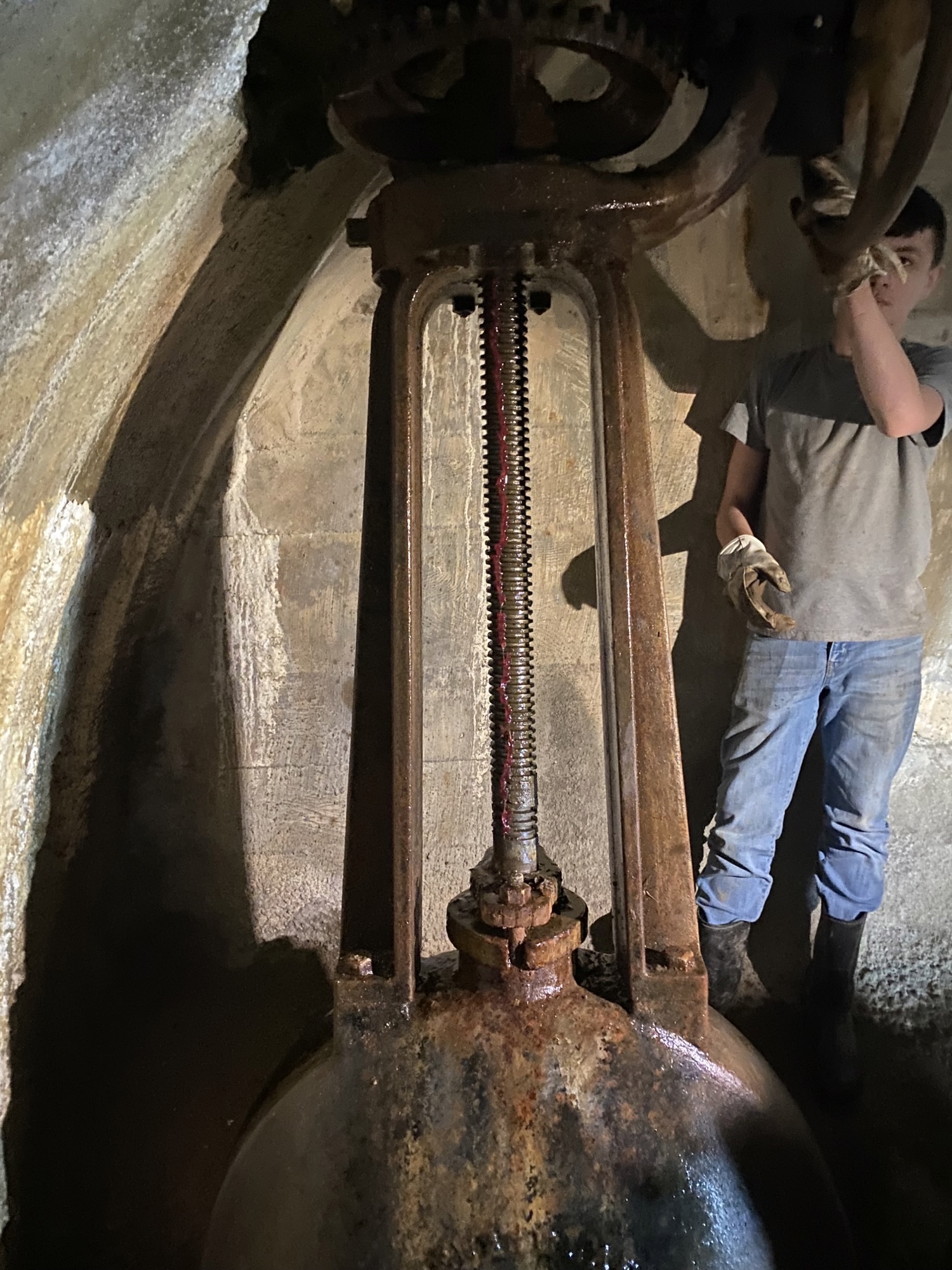

Rear Left Valve Open and Closed

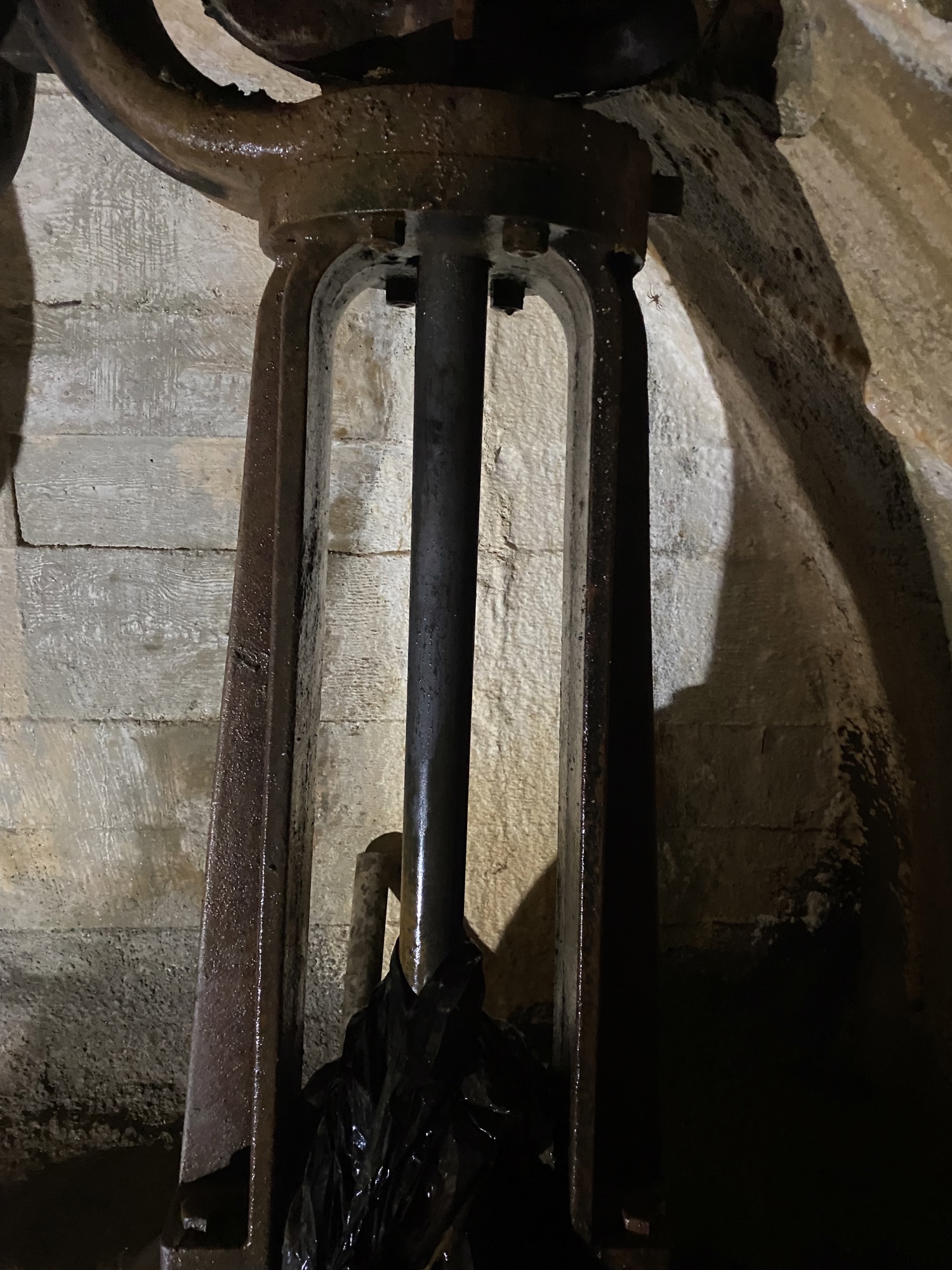

Rear Right Valve Open and Closed

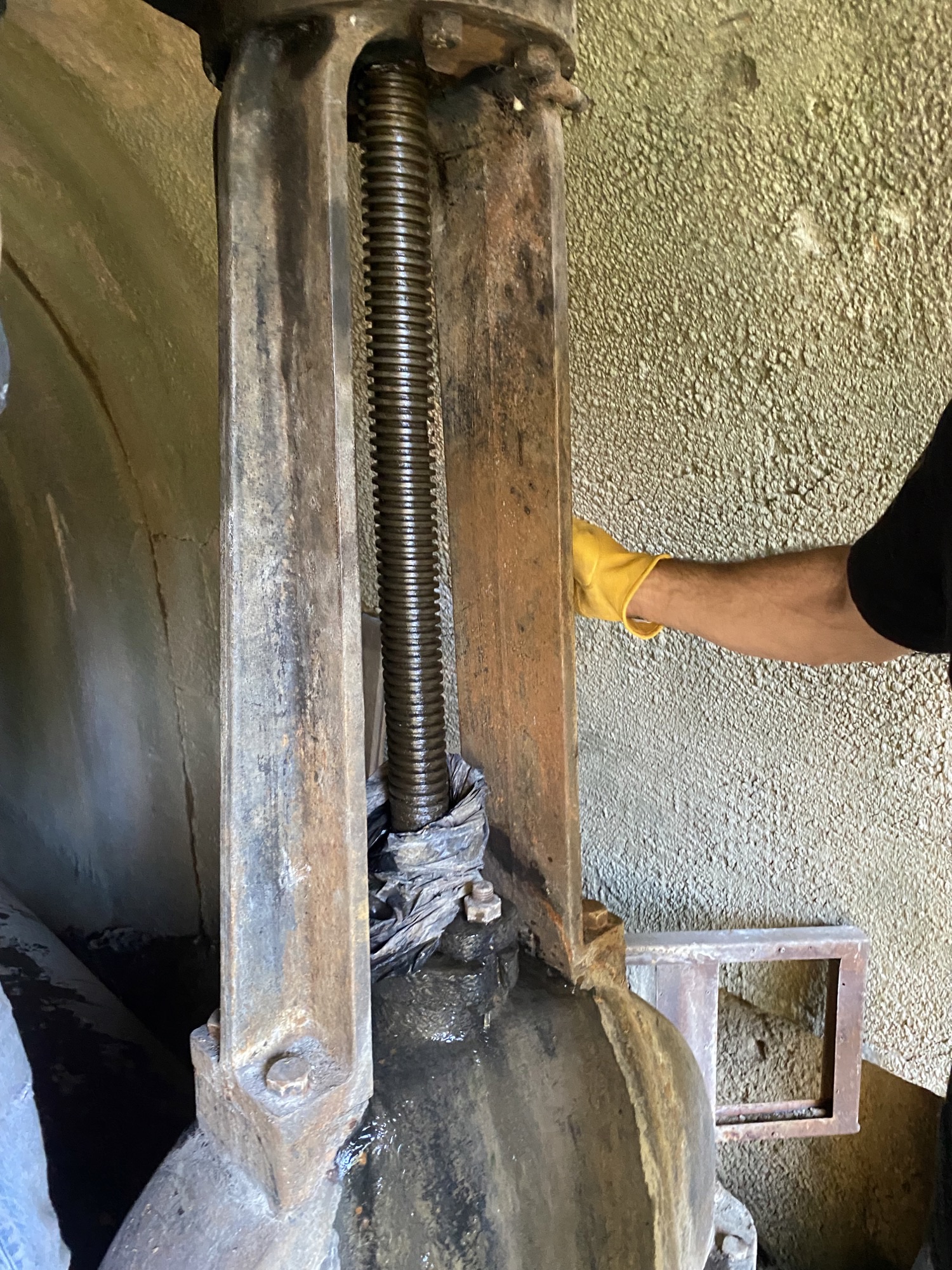

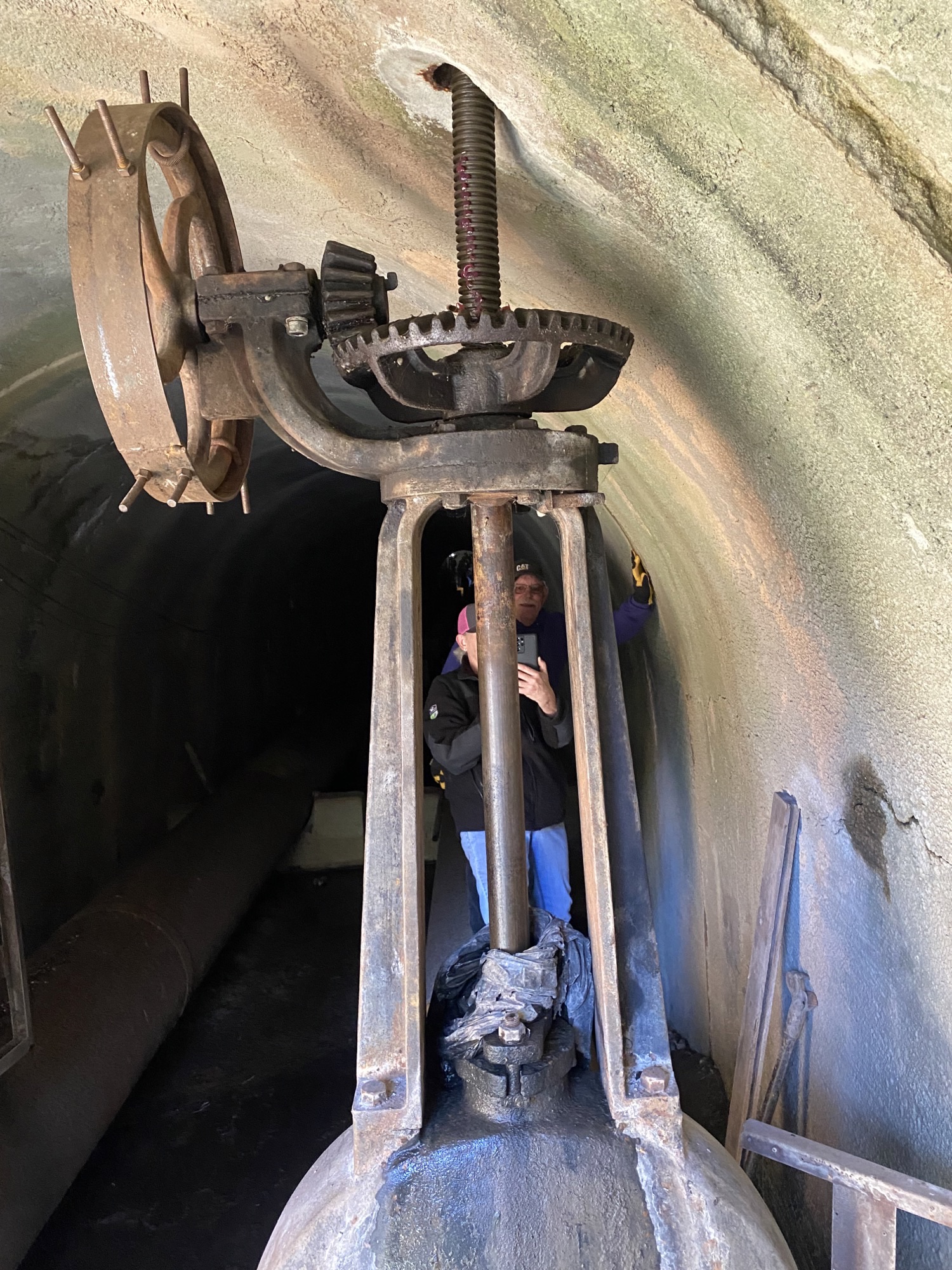

Front Right Valve Open and Closed

Right pipe no flow

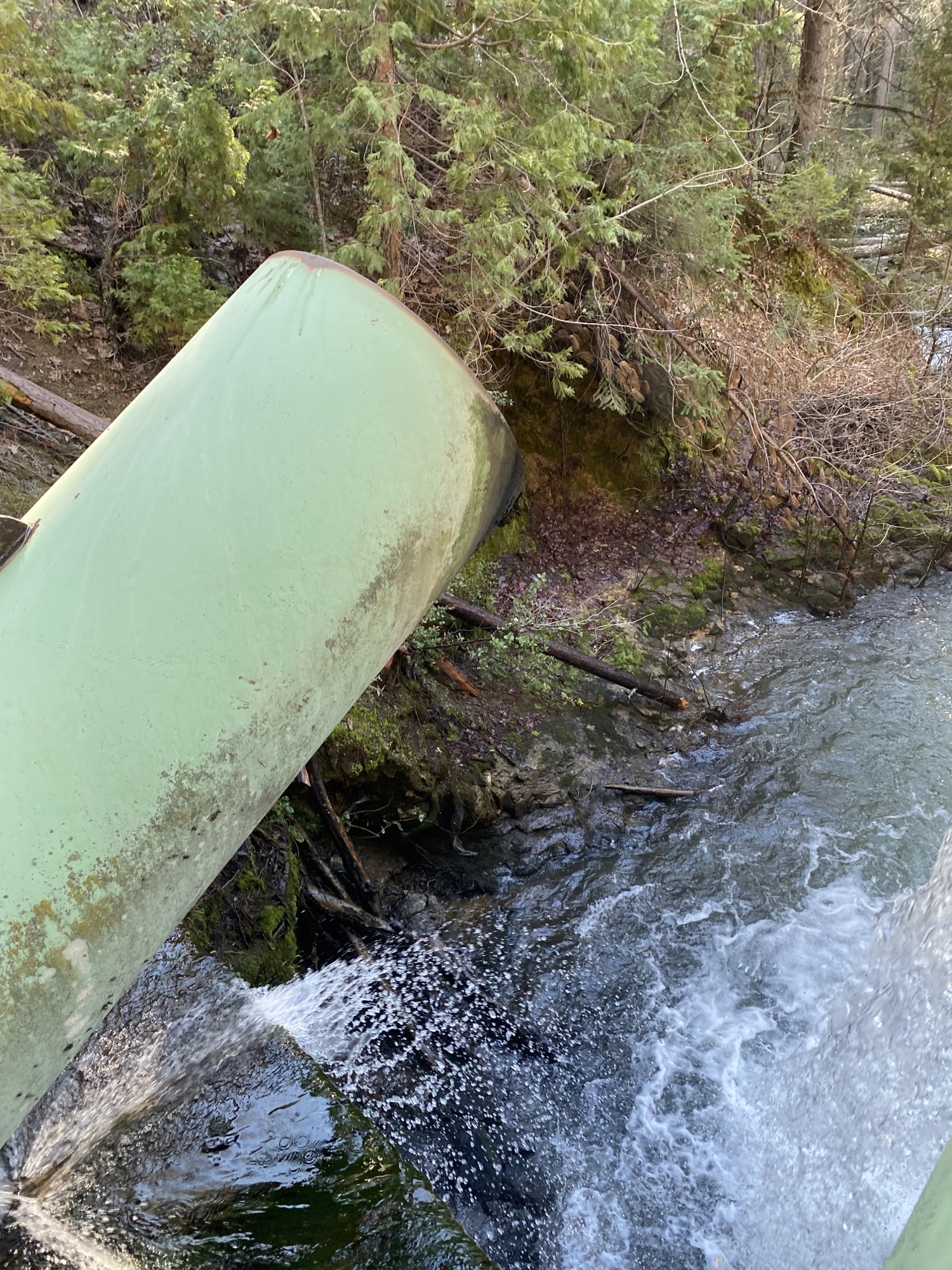

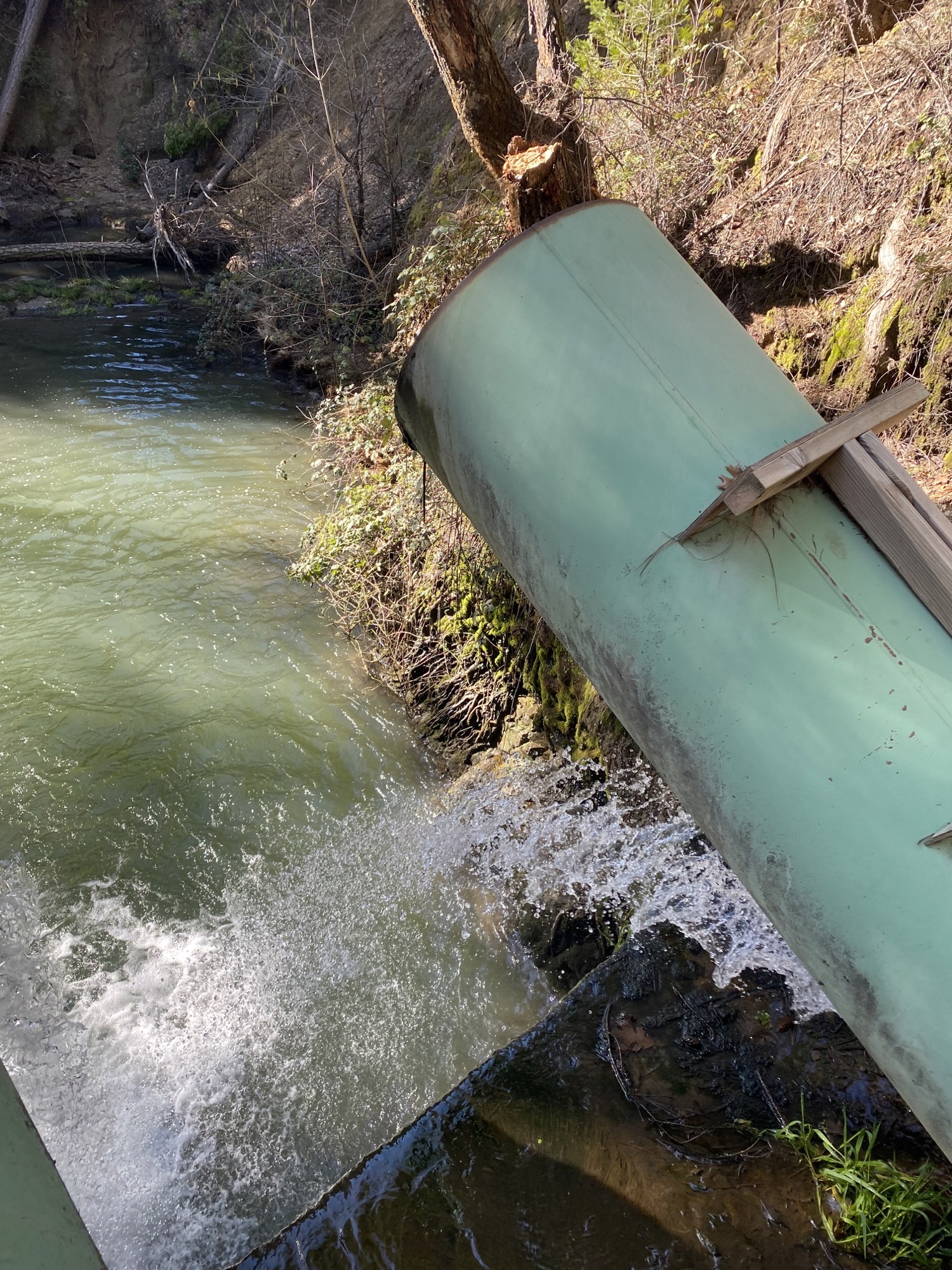

Left Pipe no flow

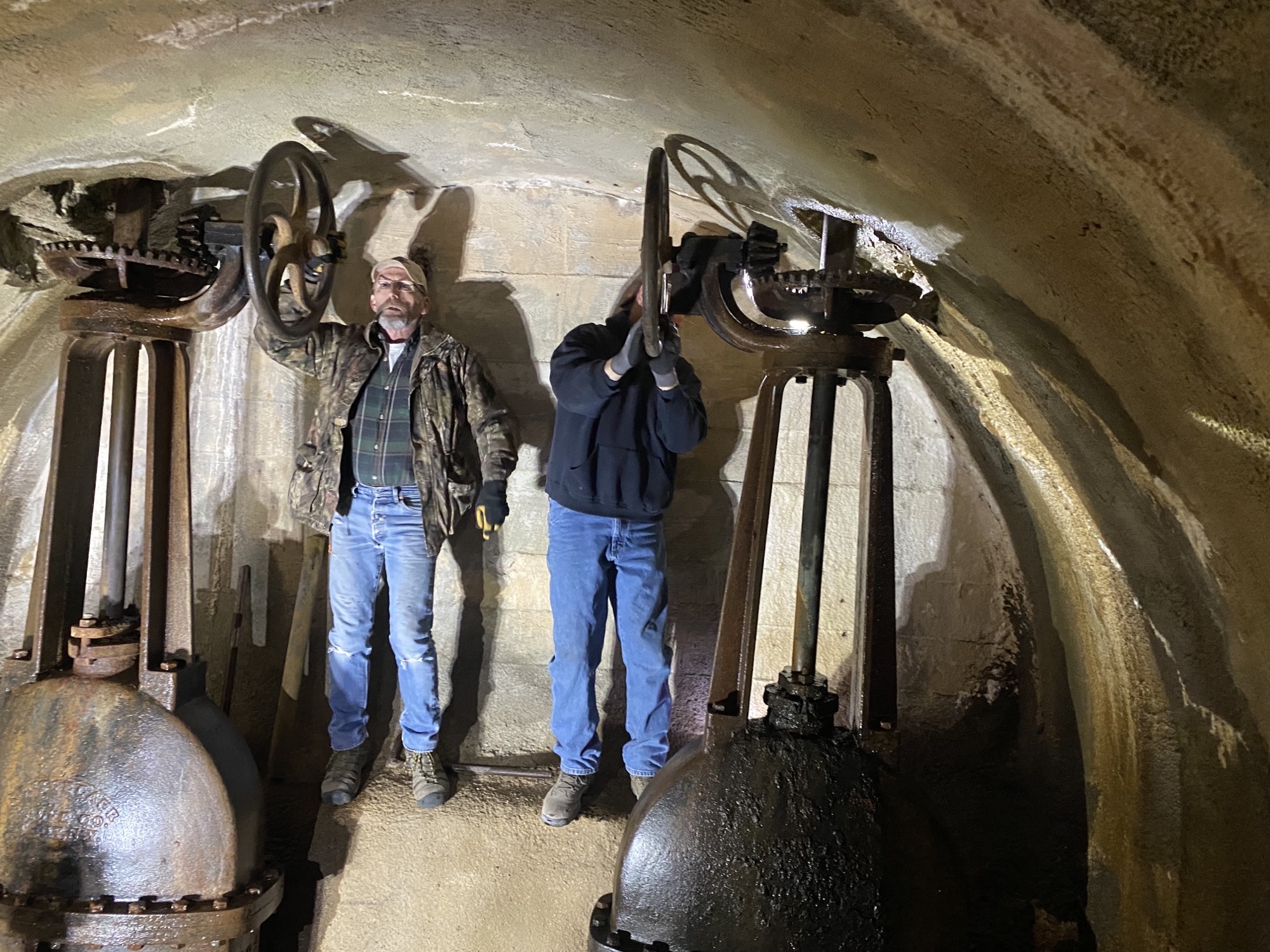

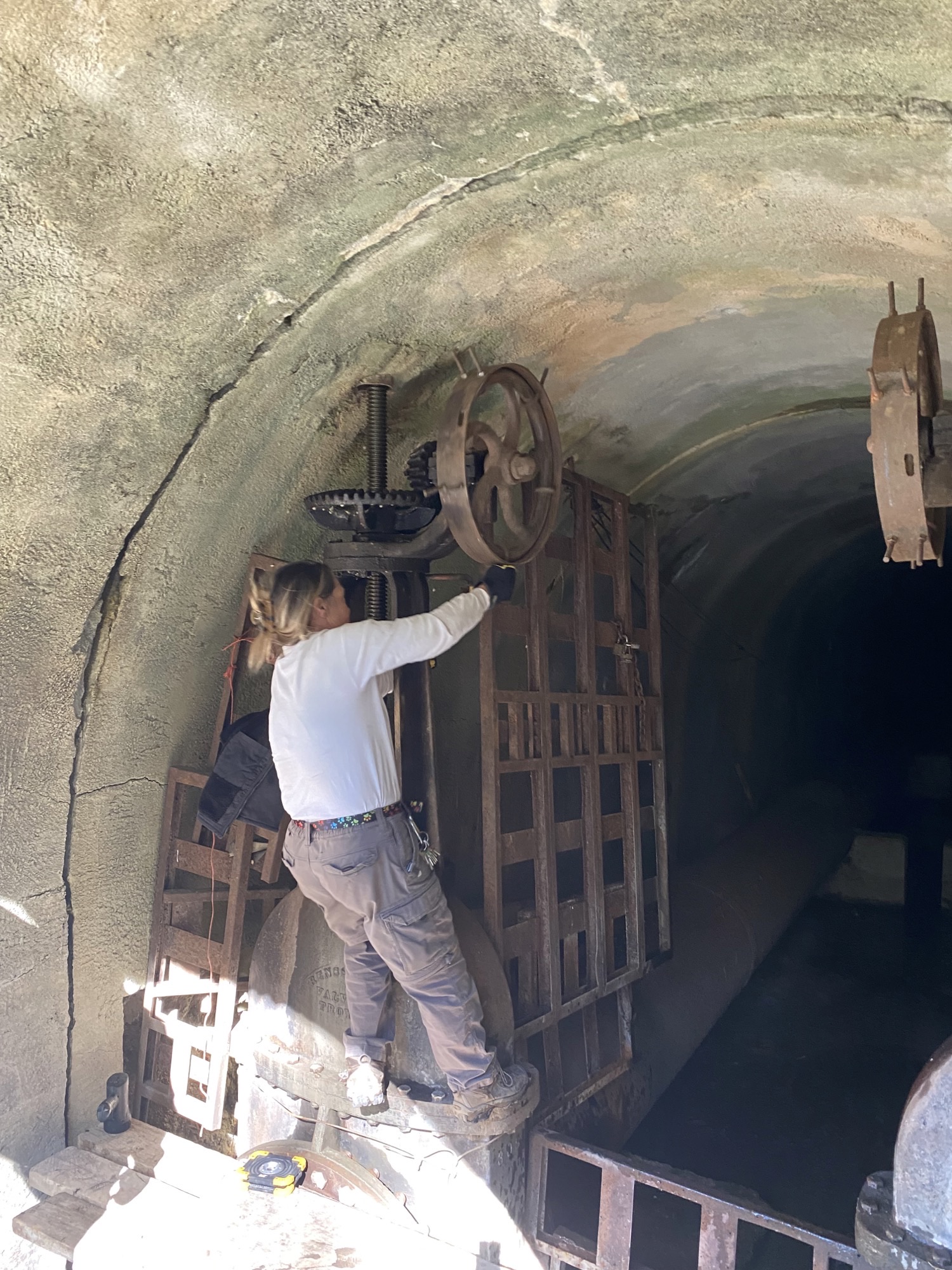

Turning valves

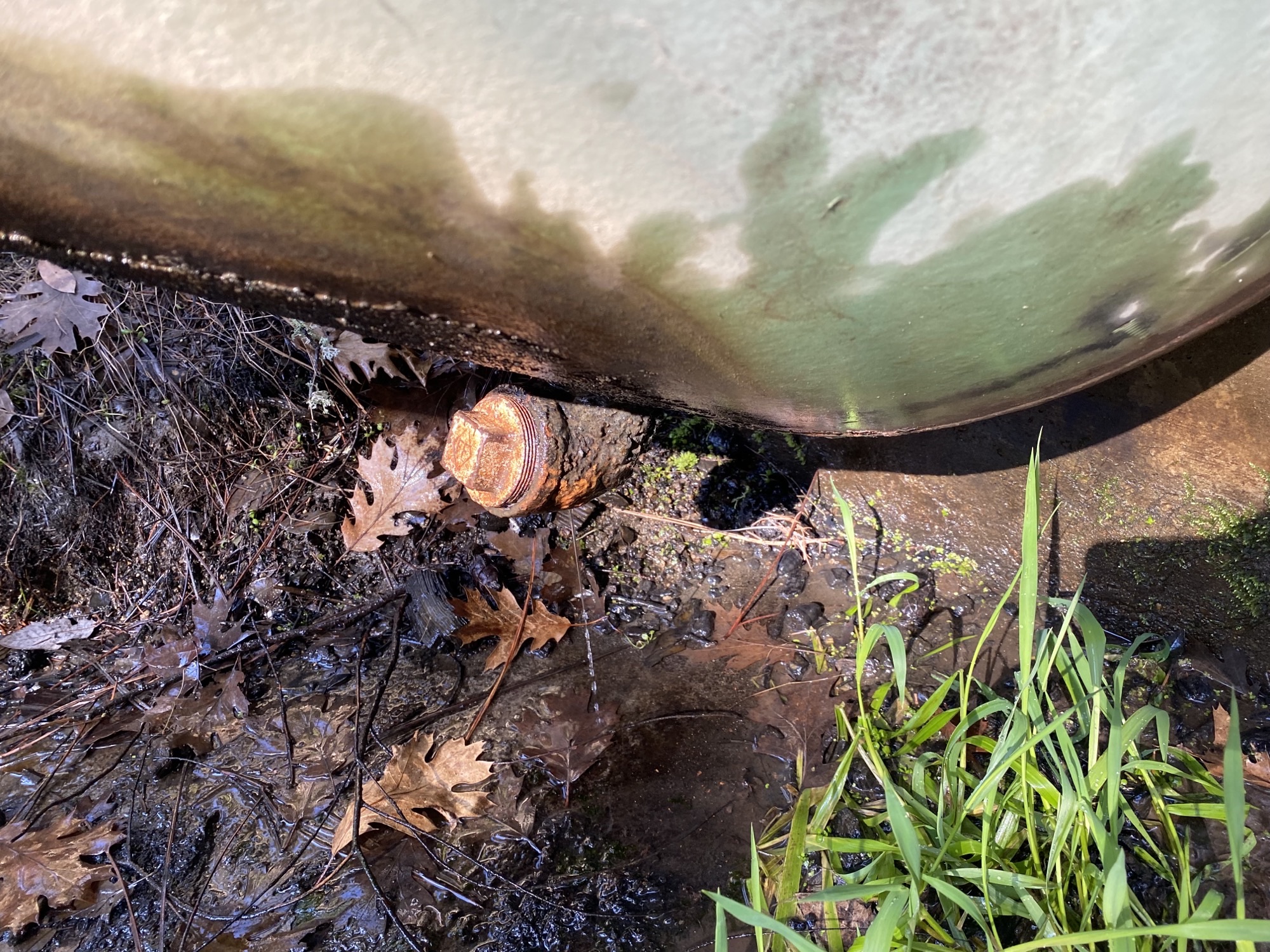

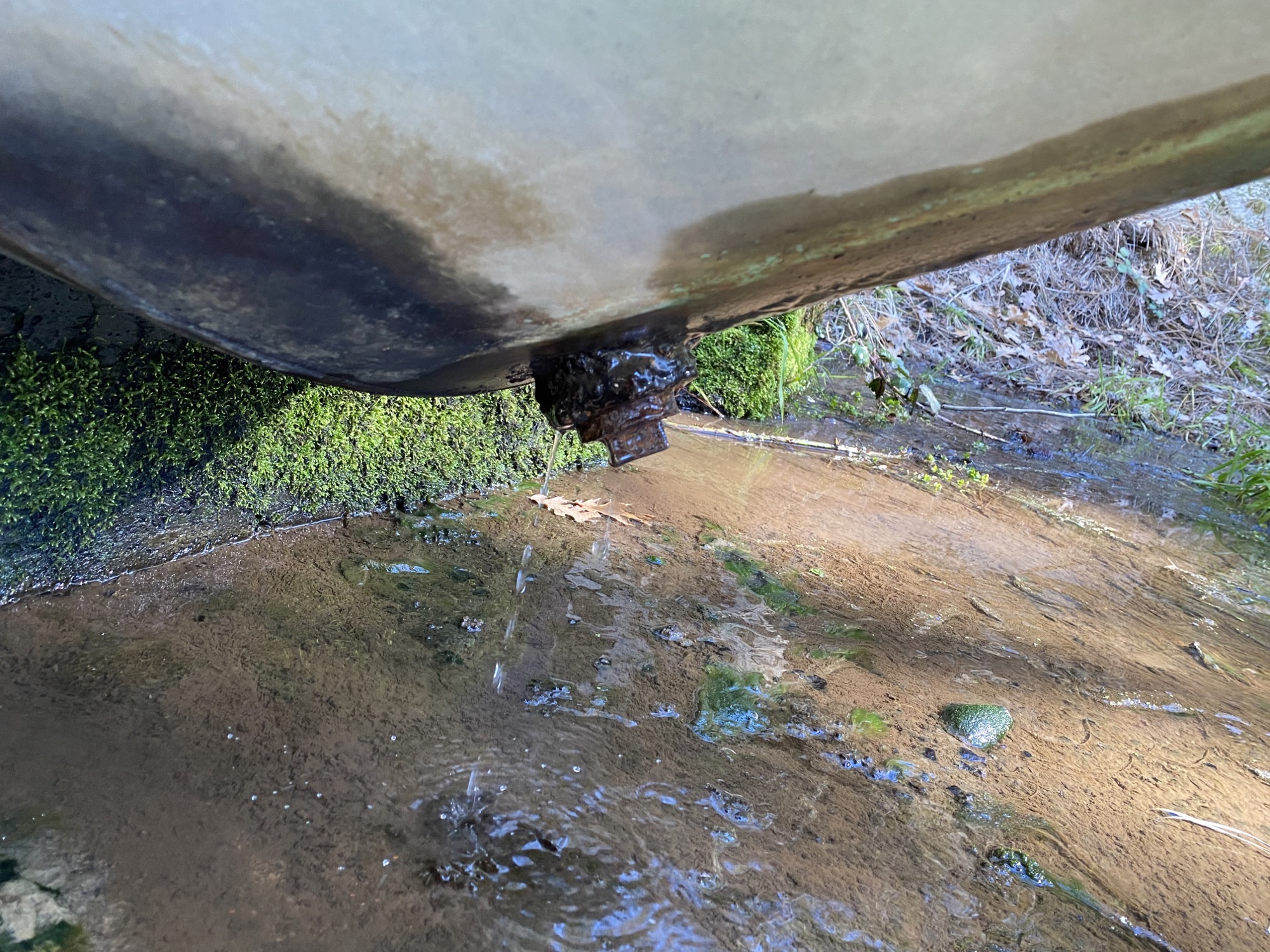

Left side plug in

Right side plug in
